Set the brief
Choose Road, Gravel, Trail or Enduro, then establish the wheelset standard.
Pilot platform for independent wheel buildersRequest Builder Access ↗
Precision carbon fiber wheel kits · built for builders
Engineering confidence
for every wheel build.
WFB supplies carbon fiber rims & wheel kits. Their layup, drilling and spoke-interface behaviour demand engineering discipline beyond ordinary component matching — before a single spoke is laced.
Carbon Fiberrims & wheel kits
Engineeringlayup, drilling & geometry
One to Onetechnical review
The WFB point of view
A wheel kit should arrive as a considered system, not a bag of parts.
We replace spreadsheet drift and back-and-forth with a traceable component record, an angle-aware check and a direct technical review before quotation.
A disciplined build path
From intent to a build-ready kit.
Select verified parts
Filter the Rim, Hub, Spoke and Nipple Libraries by exact engineering constraints.
Check the build
Confirm holes, drilling logic, lacing, flange geometry and spoke-angle behaviour.
Review & quote
WFB checks the final brief with you, confirms supply and issues the build sheet.
Configuration workspace
Shape a wheelset.
Then make it defensible.
Initial WFB rules begin with a Carbon Fiber Rim, then keep every kit intentional through matched front / rear hole count, one spoke model and one shared lacing configuration.
Current Pilot RuleCarbon Fiber Rims only · 700C Road / Gravel · 29" Mountain · 32" wheels
WFB KIT / 0001
700C Road Disc wheelset
Draft saved in local preview
01 / Intent02 / Parts03 / Review
Rim Variant
24H (1:1) · 21H (2:1)ERD 539 mm50 mm depth
Hub / spoke interface
Center Lock · 12×100 / 12×142 for Road / Gravel
Shared lacing configuration
Front and rear use the same first-pilot lacing rule.
Compatibility status
Review required
Hole count, 14G system and 1:1 / 2X resolve. WFB will confirm rim drilling-angle data, exact hub geometry and final spoke length during Technical Review.
WFB Component Libraries
Carbon Fiber Rim data
built for the workstand.
WFB is a Carbon Fiber Rim manufacturer and supplier. Every public record focuses on the laminate, geometry and drilling decisions a wheel builder needs to trust. Aluminium rims are intentionally outside the WFB scope.

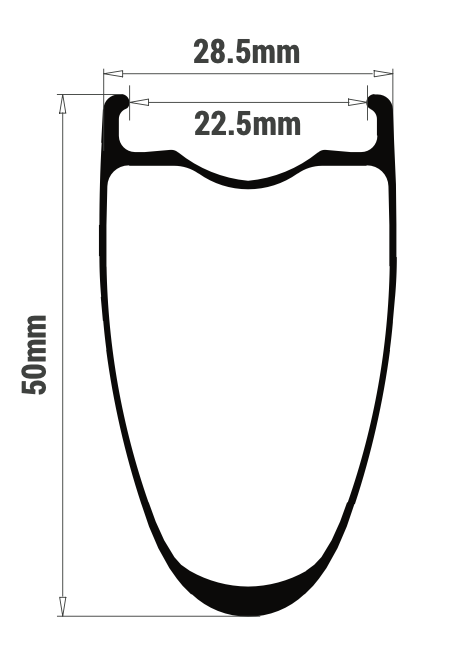

RIM / RD50Carbon Fiber · 700C · 24H (1:1) · 21H (2:1)
Road Disc
RD50
Hooked 50 mm carbon fiber road disc rim with a 22.5 mm internal platform and centered profile.
MaterialCarbon Fiber
Internal / external22.5 / 28.5 mm
Depth50 mm
ERD539 mm
Weight380 g ±3%

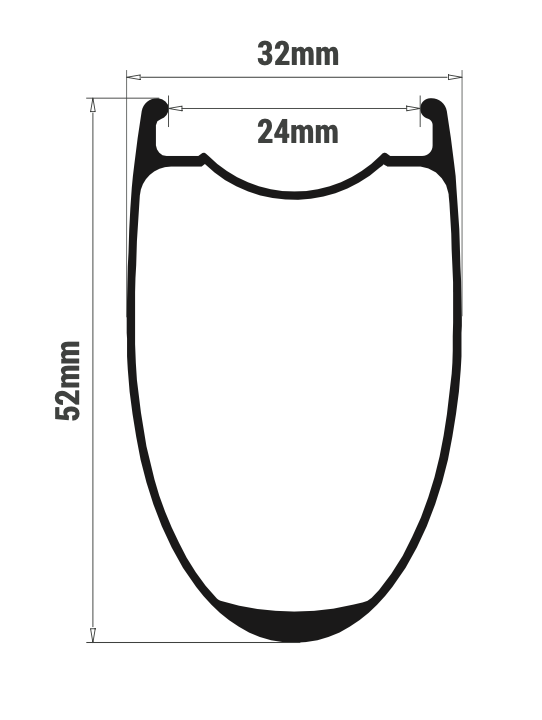

RIM / RD52WCarbon Fiber · 700C · 24H
Road Disc
RD52W
Hooked 52 mm carbon fiber road disc rim with a 24 mm internal platform and centered profile.
MaterialCarbon Fiber
Internal / external24 / 32 mm
Depth52 mm
ERD535 mm
Weight415 g ±3%

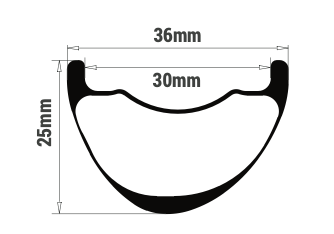

RIM / ME30Carbon Fiber · 29" · 28H
Mountain
ME30
Hookless 25 mm carbon fiber mountain rim with a 30 mm internal platform and 2 mm off-center profile.
MaterialCarbon Fiber
Internal / external30 / 36 mm
Depth25 mm
ERD589.3 mm
Weight400 g ±3%

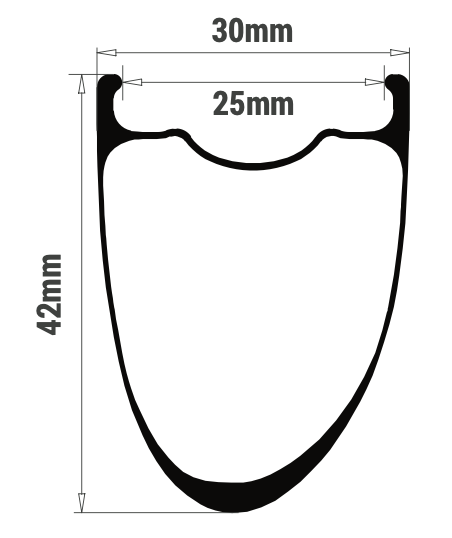

RIM / G42Carbon Fiber · 700C · 24H
Gravel
G42
Hooked 42 mm carbon fiber gravel rim with a 25 mm internal platform and 2 mm off-center profile.
MaterialCarbon Fiber
Internal / external25 / 30 mm
Depth42 mm
ERD555 mm
Weight402 g ±3%
Hub Library
DT Swiss and Hubsmith variants with Centre Lock, axle, PCD, centre-to-flange and J-bend / straight-pull geometry.
Verification queueSpoke Library
Sapim Race, D-Light, CX-Ray, Sprint and CX-Sprint — 14G, black, filtered by hub interface.
Verification queueSpoke Angle Calculator
Geometry becomes a conversation, not a guess.
WFB hands the selected rim and hub dimensions to the spoke-angle calculator. The Build Brief records the geometry inputs and the resulting axial angles for a traceable technical review.
Build geometry matrixDT 240 Road Disc · 24H
| Wheel | Rim ERD | PCD L / R | Flange to Center L / R | Lacing Pattern | Axial Angle L / R |
|---|---|---|---|---|---|
| Front | 559.0 mm | 37.2 / 37.0 mm | 22.1 / 35.2 mm | 1:1 · 2X | 4.67° / 7.41° |
| Rear | 559.0 mm | 37.3 / 44.2 mm | 33.6 / 17.6 mm | 1:1 · 2X | 7.08° / 3.74° |
Axial angles are calculated from the selected geometry. Spoke length remains to be confirmed through WFB technical review and practical assembly.
Pilot access
Bring your next build
into the workshop.
Libraries remain public. Builder Portal access is intentionally reviewed so WFB can support a small group of serious wheel builders well.
